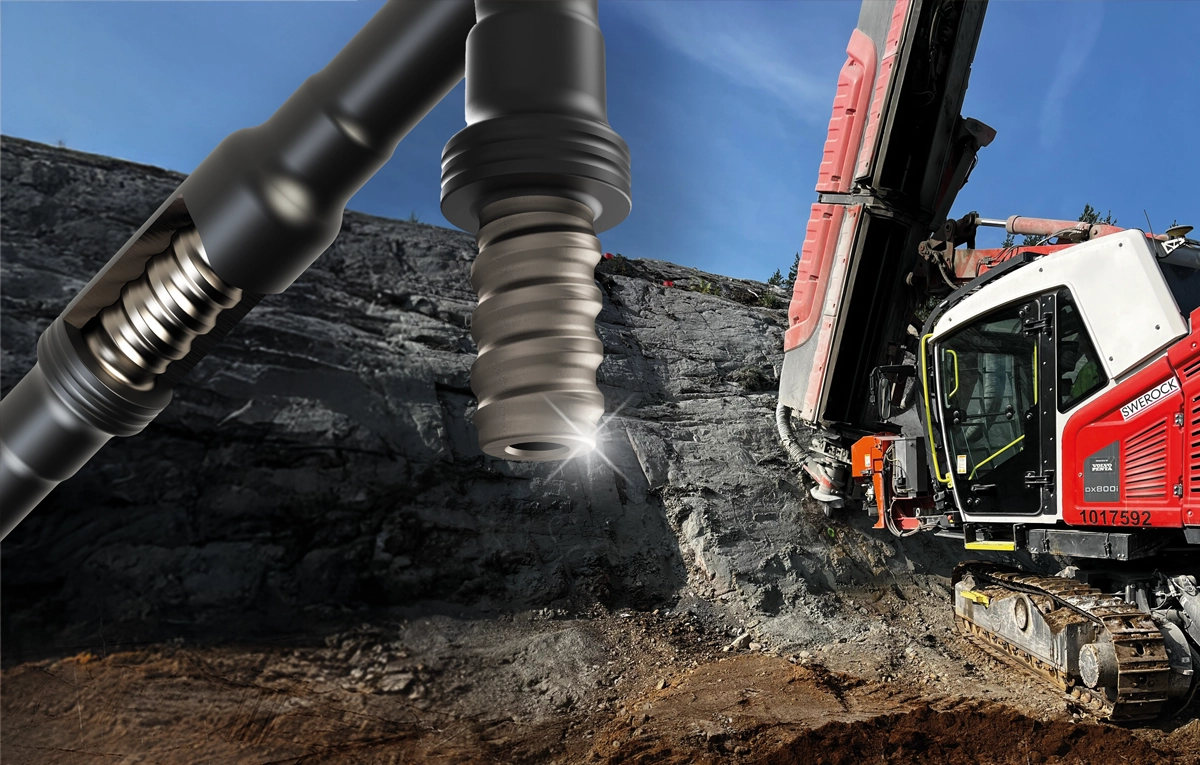

RG45 & RG51 rods set new standards for Top Hammer
Robit’s product development has long focused on the final part of the drill string: the drill bit. Recent years have seen major innovations in hammers as well. The latest breakthrough is for the middle of the drill string: the RG45 and RG51 drill rod for Top Hammer applications.
The part of the rod most susceptible to impact wear is the thread. The RG45 & RG51 rod threads feature shoulders that take the impact energy; the threading only transmits rotation, making the rod significantly stiffer and more durable than standard ones. This improves wear resistance, penetration rate, and even hole straightness, says Robit’s Sales Manager Santeri Sillanaukee.
“A shoulder-driven rod is not a new invention in itself; it has primarily been used in underground drilling and larger equipment before, but in open pits in the Nordics, the method is new,” Santeri explains.
“Compared to the competition, the RG45 & RG51 are much easier to use. They are fully compatible with standard C45/T45 or C51/T51 shank adapters and drill rods. This means that installing the RG45 & RG51 are extremely straightforward and does not require any modifications to the drill rig,” Santeri says.
PEAB, the largest Nordic construction company, runs several open-pit quarries in Finland as part of its aggregate business. PEAB has tested the RG51 rod at its quarries for several years, and the results are compelling. Drill strings equipped with the RG51 rod have significantly better durability than the competition. The penetration rate and hole straightness have also clearly improved. PEAB has almost entirely switched to RG51 rods for Top Hammer drilling in Finland.
Since the early test phases, PEAB driller Tapani Kalmukoski has gained firsthand experience with the RG51 rod in extraction blasting at various crushing sites.
“Rod breakages have decreased a lot. The RG51 is much more durable than a standard rod. Breakage at the thread is very rare. Wear resistance is also excellent. We achieve at least one-third more drill meters than a standard rod and even up to 50% more in difficult conditions. Everyone at PEAB is satisfied with the RG51,” Tapani says.
The RG45 and RG51 rods were developed in Finland under the leadership of R&D & Top Hammer Specialist Daniel Kujanen. The rods are manufactured at the South Korean factory, and demand is growing steadily. “Currently, the next batch is already pre-sold,” says Santeri Sillanaukee.
